在开发微信小程序的过程中经常会遇到这样的需求,需要做一个小程序同时选中三张图片一起上传到服务端,后端使用的.NET WEBAPI接收数据保存。如何进行操作?春哥团队技术大东分享如下:
使用技术:将会使用到微信小程序wx.uploadFile(Object object) 和wx.chooseImage(Object object)接口,对图片大小和来源进行上传。
wx.chooseImage() 概述:
从本地相册选择图片或使用相机拍照,详细了解请阅读微信小程序开发文档(https://developers.weixin.qq.com/miniprogram/dev/api/wx.chooseImage.html?search-key=wx.chooseimage)

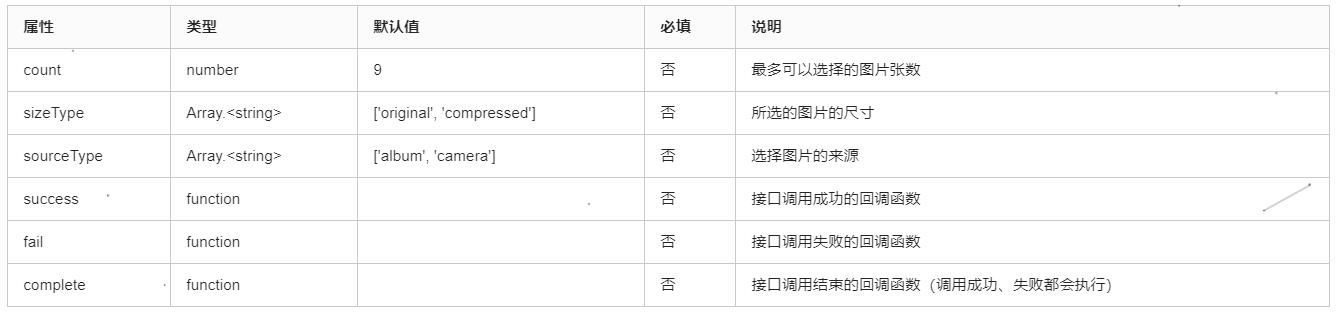

参数
Object object
wx.uploadFile()概述:
将本地资源上传到服务器。客户端发起一个 HTTPS POST 请求,其中 content-type 为 multipart/form-data,详细了解请阅读微信小程序开发文档(https://developers.weixin.qq.com/miniprogram/dev/api/wx.uploadFile.html?q=wx.uploadFile)。
参数
废话不多说,上代码:
.Wxml code:
class='form-s2'>
门店照片(请选择三张)
class="weui-uploader__files" id="uploaderFiles">
wx:for="{{files}}" wx:key="*this">
class="weui-uploader__file" bindtap="previewImage" id="{{item}}" style='margin-top:11px;'>
class="weui-uploader__img" src="{{item}}" mode="aspectFill" />
class="weui-uploader__input-box" style='top:11px;'>
class="weui-uploader__input" bindtap="chooseImage">
.Js code:
Page({
/**
* 页面的初始数据
*/
data:
{
files: [], //门店图片信息,数组图片保存作为数据源
},
,
/**
* 多图片上传
*/
chooseImage: function(e) {
var that = this;
if (that.data.files.length > 2) {
resource.notishi("抱歉最多只允许上传三张图片哟~");
return false;
}
wx.chooseImage({
count: 3, //默认9张,这里设置三张
sizeType: ['original', 'compressed'], // 可以指定是原图还是压缩图,默认二者都有
sourceType: ['album', 'camera'], // 可以指定来源是相册还是相机,默认二者都有
success: function(res) {
wx.showLoading({
title: '上传中,请稍等...',
})
// 返回选定照片的本地文件路径列表,tempFilePath可以作为img标签的src属性显示图片
var tempFilePaths = res.tempFilePaths;
//多图片上传,tempFilePaths本地图片地址为一个数组,遍历调用服务器图片上传接口即可实现多图保存
for (var i = 0; i < tempFilePaths.length; i++) {
console.log('图片地址名称' + tempFilePaths[i]);
wx.uploadFile({
url: app.globalData.hostUrl + "/api/PictureUpload/Upload", //此处为实际接口地址
filePath: tempFilePaths[i], //获取图片路径
header: {
'content-type': 'multipart/form-data'
},
name: 'upload',
success: function(res) {
wx.hideLoading();
let Result = JSON.parse(res.data);
console.log(Result);//接收返回来的服务器图片地址
if (Result.code == 1) {
let picurl = app.globalData.hostUrl + Result.picurl;
console.log(picurl);
that.setData({
files: that.data.files.concat(picurl)
});
} else {
resource.notishi("网络异常,请稍后再试");
}
},
fail: function(res) {
wx.hideLoading()
wx.showToast({
title: '上传失败,请重新上传',
icon: 'none',
duration: 2000
})
},
})
}
}
})
},
//图片预览
previewImage: function(e) {
wx.previewImage({
current: e.currentTarget.id, // 当前显示图片的http链接
urls: this.data.files // 需要预览的图片http链接列表
})},
})
后端图片接收保存 code(.Net WEBAPI)
///
/// 图片上传保存
///
///
[HttpPost]
public IHttpActionResult Upload()
{
try
{
var content = Request.Content;//获取http设置的消息和内容
var tempUploadFiles = "/Images/Wechatimages/";//保存路径
var newFileName = "";
string filePath = "";
string extname = "";
string returnurl = "";
var sp = new MultipartMemoryStreamProvider();
Task.Run(async () => await Request.Content.ReadAsMultipartAsync(sp)).Wait();
foreach (var item in sp.Contents)
{
if (item.Headers.ContentDisposition.FileName != null)
{
var filename = item.Headers.ContentDisposition.FileName.Replace("\"", "");
FileInfo file = new FileInfo(filename);
string fileTypes = "gif,jpg,jpeg,png,bmp";
if (Array.IndexOf(fileTypes.Split(','), file.Extension.Substring(1).ToLower()) == -1)
{
throw new ApplicationException("不支持上传文件类型");
}
//获取后缀
extname = System.IO.Path.GetExtension(filename);//获取文件的拓展名称
newFileName = Guid.NewGuid().ToString().Substring(0, 6) + extname;
string newFilePath = DateTime.Now.ToString("yyyy-MM-dd") + "/";
if (!Directory.Exists(HostingEnvironment.MapPath("/") + tempUploadFiles + newFilePath))
{
Directory.CreateDirectory(HostingEnvironment.MapPath("/") + tempUploadFiles + newFilePath);
}
filePath = Path.Combine(HostingEnvironment.MapPath("/") + tempUploadFiles + newFilePath, newFileName);
returnurl = Path.Combine(tempUploadFiles + newFilePath, newFileName);//图片相对路径
var ms = item.ReadAsStreamAsync().Result;
using (var br = new BinaryReader(ms))
{
var data = br.ReadBytes((int)ms.Length);
File.WriteAllBytes(filePath, data);//保存图片
}
}
}
return Json(new {code=1,picurl= returnurl,msg="success" }) ;
}
catch (Exception ex)
{
return Json(new { code =0,msg=ex.Message});
}
}
总结:
其实做完回过头来想想,无论是微信小程序图片上传还是html页面图片上传原理其实都是差不多,都是通过content-type 为 multipart/form-data 标识,通过http post将图片资源文件以二进制的编码格式传往后台,然后后台获取对应文件流进行数据图片保存。总结的不够到位,有什么没做好的望各位大佬指点。
